Neobiotech Implant Scanbody – Metal & PEEK IOS Scanbody

High-quality Neobiotech implant scanbodies designed for accurate digital impressions and implant scanning. Compatible with Neobiotech IS implant systems, these scanbodies are available in metal and PEEK options, with different diameters to suit narrow, deep, regular and wider implant spaces.

Ideal for digital dentistry, intraoral scanning (IOS), CAD/CAM workflows and implant-supported restorations.

Package Includes

Each individual package includes:

• 1 × Scanbody
• 1 × Scanbody screw
• Compatible with a1.2 mm hex driver

Available Neobiotech Scanbody Options

1. Neobiotech SB Scanbody – Metal

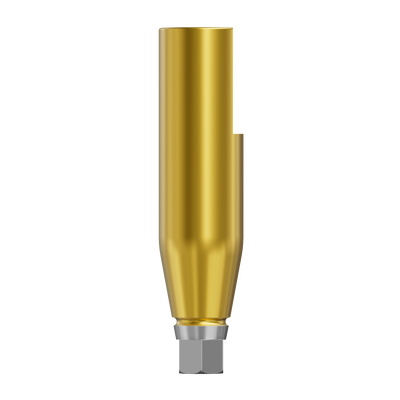

ISSB4013 – 4.0 mm Diameter
4.0 mm metal scanbody designed for narrow or deep implant spaces. Connects to all Neobiotech IS implants.

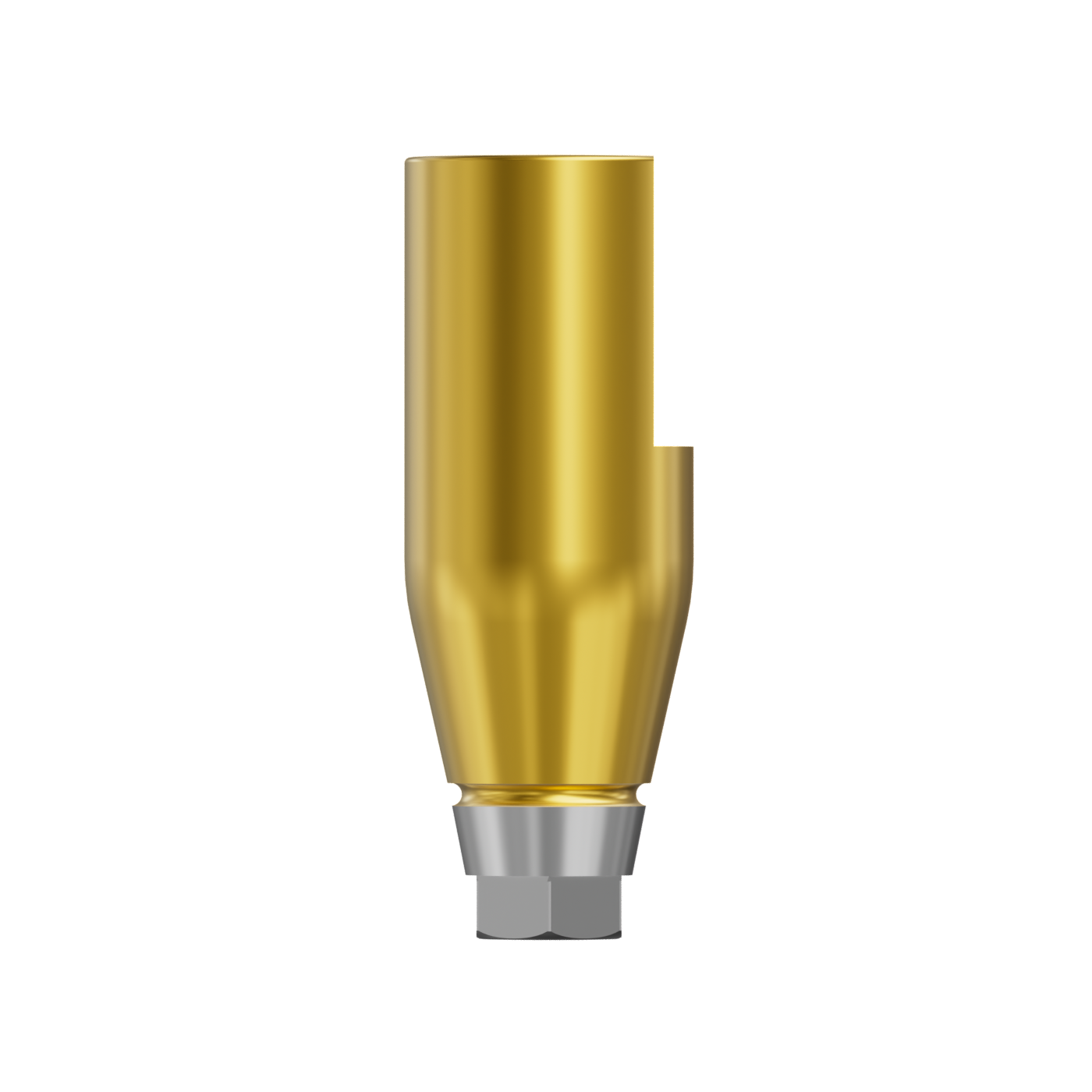

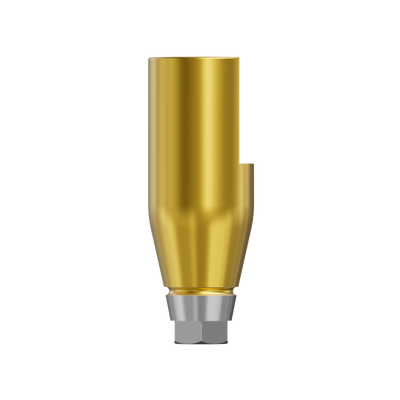

ISSB5011 – 5.0 mm Diameter
5.0 mm metal scanbody designed for regular or wider implant spaces. Connects to all Neobiotech IS implants.

2. Neobiotech IOS Scanbody – PEEK

ISPSBH40NB – D4, 4.0 mm Diameter
4.0 mm PEEK IOS scanbody for narrow or deep implant spaces. Connects to all Neobiotech IS implants and is suitable for intraoral scanning and digital impression workflows.

ISPSBH50NB – D5, 5.0 mm Diameter
5.0 mm PEEK IOS scanbody forregular implant spaces. Connects to all Neobiotech IS implants and is suitable for intraoral scanning and CAD/CAM workflows.

3. Neobiotech Multi Unit Scanbody – PEEK

MUASB48 – 4.8 mm Diameter
4.8 mm PEEK scanbody designed specifically forNeobiotech IS Multi Unit Abutments. Compatible with both straight and angled Multi Unit Abutments.

Product Specifications

Key Features

• Genuine Neobiotech-compatible implant scanbody
• Available in metal and PEEK options
• Multiple diameters for different implant spaces
• Suitable for digital implant impressions
• Designed for intraoral scanning and CAD/CAM workflows
• 1.2 mm hex screw included
• Options available for Neobiotech IS implants and Multi Unit Abutments

Please select the correct scanbody according to the implant or Multi Unit Abutment connection and clinical application.

A. Connection Height - Decide connection height when combining the fixture data

B. Oral Scan Body Screw - Fix the scan body by connecting to fixture

C. Cylinder of the Scan body - Path coordination when combining the fixture data

D. Flattened side of the Scan Body - Hex direction recognition when combining the fixture data

E. Fixture - Neobiotech IS Implants (not included)

Resources
Download link to DME library - 3shape / Exocad
